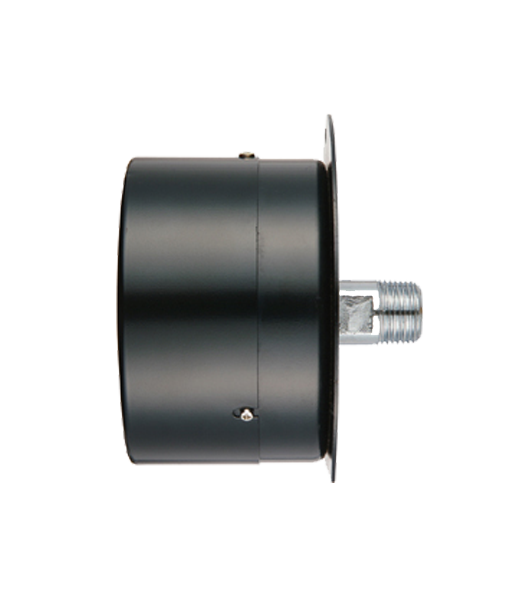

Micro Pressure Gauge - LBM/CBM
Micro Pressure Gauge - LBM/CBM
Micro Pressure Gauge - LBM/CBM
Micro Pressure Gauge - LBM/CBM
Micro Pressure Gauge - LBM/CBM
Micro Pressure Gauge - LBM/CBM
Product Specification
DIMENSION 63mm、75mm、100mm
ACCURACY 63mm class ± 3-2-3 %
75mm class ± 3-2-3 %
100 mm class ± 3-2-3 %
PRESSURE RANGE -300mm Aq Vac
to 5000 mm Aq
OPERATING TEMPERATURE Working temperature 60℃ Max.
Ambient:-20℃ ~60℃
CONNECTION Brass Alloy
Mounting: LBM/CBM
63mm thread: 13mm
75, 100mm thread: 17mm
1/4'', 3/8'', 1/2'', NPT, BSPT, BSP
SENSING ELEMENT Brass alloy diaphragms
When pressure is supplied to one side of the diaphragm, the degree of flexing
MOVEMENT Brass alloy
DIAL Aluminium in white & lettering in black
POINTER Aluminium in black
CASE Iron (Black painted or Chrome plating)
UPPER RING Iron (Black painted or Chrome plating)
WINDOW PC or Glass
ORDER OPTIONS 1. Front or rear flange
2. Adjustable red mark pointer
